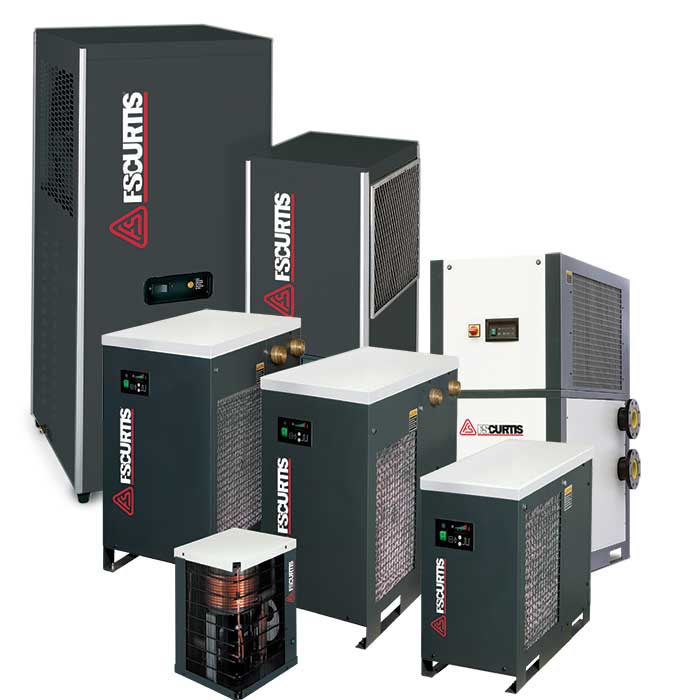

RNP Series 10-1200 SCFM Premium Non-Cycling Refrigerated Compressed Air Dryers
Sometimes a simple solution is all you need. With their small design and compact footprint, RNP
dryers take the basics to new heights, delivering reliable performance day in and day out you’ve come
to expect from FS-Curtis. They remove maximum moisture to increase efficiency and help you get the
most from your equipment.
The perfect blend of technology and simplicity, RNP dryers are easy to operate and maintain. Best of
all, they’re reliable. You can count on an ISO 8573.1 Air Quality Class 4 to Class 5 pressure dew point for
efficient, effective delivery of clean, dry, consistent-quality compressed air. Benefits & Features:
Simple and reliable copper tube-on-tube heat exchange for RNP10-50
Stainless-steel brazed plate heat exchanger for RNP75-500
Designed with quality components for extended service life
At-a-glance control panel dew point indication verifies performance
*Scroll to the right on mobile to see entire chart
Quantity
Add to Quote
Model
Capacity
Power Supply
Inlet/Outlet Connections
Dimensions
Weight
SCFM
(npt. male) in.
L(in.)
W(in.)
H(in.)
Lbs.
RNP10
10
115/1/60
3⁄8" OD
13
13
15
64
RNP15
15
115/1/60
3⁄8" OD
13
13
15
69
RNP25
25
115/1/60
¾" NPT
15
15
22
88
RNP35
35
115/1/60
¾" NPT
15
15
22
92
RNP50
50
115/1/60
¾" NPT
20
20
22
101
RNP75
75
115/1/60
¾" NPT
20
19
20
110
RNP100
100
115/1/60
1" NPT
30
13
21
123
RNP125
125
115/1/60
1" NPT
30
13
21
133
RNP150
150
115/1/60
1" NPT
30
13
21
153
RNP200
200
460/3/60
1½" NPT
36
17
30
183
RNP250
250
460/3/60
1½" NPT
36
17
30
211
RNP300
300
460/3/60
1½" NPT
38
20
30
211
RNP400
400
460/3/60
2" NPT
38
21
30
232
RNP500
500
460/3/60
2" NPT
41
25
32
262
RNP600
600
460/3/60
2" NPT
32
22
50
353
RNP800
800
460/3/60
3" FLG
59
30
42
687
RNP1000
1000
460/3/60
4" FLG
64
29
45
786
RNP1200
1200
460/3/60
4" FLG
64
29
45
810
Rated Flow Capacity - Conditions for rating above dryers are: compressed air at dryer inlet: 100 psig and 100°F saturated; ambient temperature: 100° operating on 60 Hz power supply.At rated conditions, pressure drop is less than 5 psi.
RNP Series Features:
• Simple and reliable copper tube-on-tube heat exchange for RNP10-50
• Stainless-steel brazed plate heat exchanger for RNP75-500
• Designed with quality components for extended service life
• At-a-glance control panel dew point indication verifies performance
• Cleanable cabinet filter for RNP100-1200
• R-134a environmentally friendly refrigerant
Options Water Cooled Option - Available For RNP600, RNP800, RNP1000 & RNP1200 Options for RNP10 and RNP15 -
• Air by-pass valve
• Filter regulator assembly
• Wall mount brackets
Accessories Water Cooled Option - Available For RNP10 - RNP500
