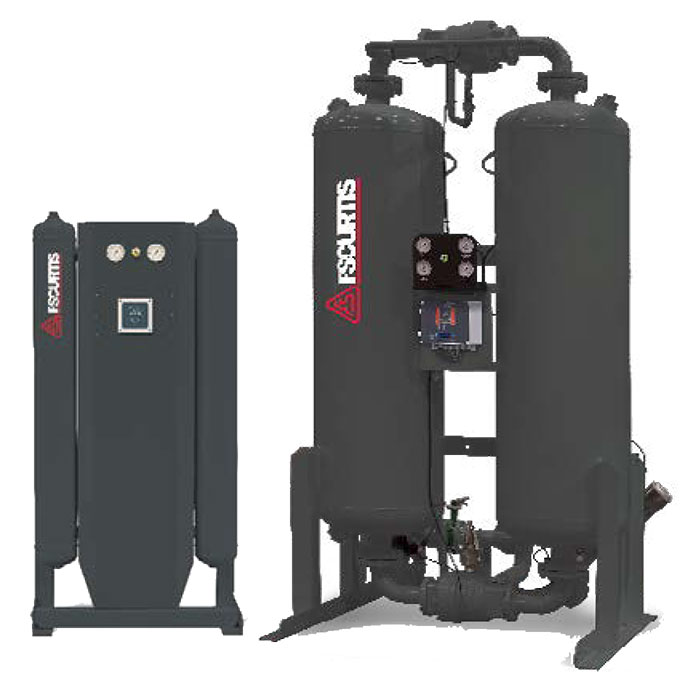

DL Series 40-5400 SCFM
Heatless Desiccant Air Dryers

FS-Curtis DL desiccant dryers are available with three application specific control systems. No matter what your application, there’s a control system just right for your needs. FS-Curtis DL heatless desiccant dryers deliver consistent outlet pressure dew points to -100˚F. By combining the proven benefits of desiccant drying technology with the industry leading design, FSCurtis’ DL dryers provide the most reliable compressed air drying system for various applications.

Benefits & Features:
  • Up-flow drying which allows water and heavy contaminants to drop out of the air stream
  • Premium grade desiccant beads enhance surface area, requires minimum purge air, and have high crush strength
  • ASME and CRN certified pressure vessels
  • Optional pre-mounted filtration package increases lifetime of desiccant and avoids system contamination
  • Precision switch valves automatically shift to low pressure side of the circuit to control process flow

Standard Controller Models: DLS40, DLS60, DLS90, DLS115, DLS165, DLS260, DLS370, DLS450, DLS590, DLS750, DLS930, DLS1130, DLS1350, DLS1550, DLS2100, DLS3000, DLS4100, DLS5400

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Inlet
Flow2
Power
Supply
Inlet/Outlet
Dimensions
Weight
@ 100 psig
SCFM
V/ph/Hz
NPT Male (in.)
L in.
W in.
H in.
Lbs.
DLS40
40
100-120/1/60
1"
49"
34"
35"
365
DLS60
60
100-120/1/60
1"
64"
34"
35"
445
DLS90
90
100-120/1/60
1"
81"
34"
35"
575
DLS115
115
100-120/1/60
1"
57"
46"
41"
685
DLS165
165
100-120/1/60
1"
57"
46"
41"
685
DLS260
260
100-120/1/60
2"
75"
51"
41"
1010
DLS370
370
100-120/1/60
2"
65"
58"
42"
1215
DLS450
450
100-120/1/60
2"
73"
58"
42"
1350
DLS590
590
100-120/1/60
2"
104"
55"
51"
1473
DLS750
750
100-120/1/60
3" ANSI Flg.
107"
57"
51"
2134
DLS930
930
100-120/1/60
3" ANSI Flg.
112"
63"
59"
2414
DLS1130
1,130
100-120/1/60
3" ANSI Flg.
115"
66"
59"
2875
DLS1350
1,350
100-120/1/60
3" ANSI Flg.
120"
68"
59"
3722
DLS1550
1,550
100-120/1/60
3" ANSI Flg.
117"
74"
59"
4167
DLS2100
2,100
100-120/1/60
4" ANSI Flg.
119"
82"
59"
4417
DLS3000
3,000
100-120/1/60
4" ANSI Flg.
125"
86"
67"
9010
DLS4100
4,100
100-120/1/60
6" ANSI Flg.
124"
100"
88"
9900
DLS5400
5,400
100-120/1/60
6" ANSI Flg.
124"
105"
89"
12000
2Inlet flow - Conditions for rating above dryers are: compressed air at dryer inlet: 100°F inlet 100 psig inlet pressure; 100% relative humidity, 100°F ambient temperature, and 5 psi pressure drop.
Selectable purge controller Models: DLP40, DLP60, DLP90, DLP115, DLP165, DLP260, DLP370, DLP450, DLP590, DLP750, DLP930, DLP1130, DLP1350, DLP1550, DLP2100, DLP3000, DLP4100, DLP5400

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Inlet
Flow2
Power
Supply
Inlet/Outlet
Dimensions
Weight
@ 100 psig
SCFM
V/ph/Hz
NPT Male (in.)
L in.
W in.
H in.
Lbs.
DLP40
40
100-240/1/60
12-24VDC
1"
49"
34"
35"
365
DLP60
60
100-240/1/60
12-24VDC
1"
64"
34"
35"
445
DLP90
90
100-240/1/60
12-24VDC
1"
81"
34"
35"
575
DLP115
115
100-240/1/60
12-24VDC
1"
57"
46"
41"
685
DLP165
165
100-240/1/60
12-24VDC
1"
57"
46"
41"
685
DLP260
260
100-240/1/60
12-24VDC
2"
75"
51"
41"
1010
DLP370
370
100-240/1/60
12-24VDC
2"
65"
58"
42"
1215
DLP450
450
100-240/1/60
12-24VDC
2"
73"
58"
42"
1350
DLP590
590
100-240/1/60
12-24VDC
2"
104"
55"
51"
1473
DLP750
750
100-240/1/60
12-24VDC
3" ANSI Flg.
107"
57"
51"
2134
DLP930
930
100-240/1/60
12-24VDC
3" ANSI Flg.
112"
63"
59"
2414
DLP1130
1,130
100-240/1/60
12-24VDC
3" ANSI Flg.
115"
66"
59"
2875
DLP1350
1,350
100-240/1/60
12-24VDC
3" ANSI Flg.
120"
68"
59"
3722
DLP1550
1,550
100-240/1/60
12-24VDC
3" ANSI Flg.
117"
74"
59"
4167
DLP2100
2,100
100-240/1/60
12-24VDC
4" ANSI Flg.
119"
82"
59"
4417
DLP3000
3,000
100-240/1/60
12-24VDC
4" ANSI Flg.
125"
86"
67"
9010
DLP4100
4,100
100-240/1/60
12-24VDC
6" ANSI Flg.
124"
100"
88"
9900
DLP5400
5,400
100-240/1/60
12-24VDC
6" ANSI Flg.
124"
105"
89"
12000
2Inlet flow - Conditions for rating above dryers are: compressed air at dryer inlet: 100°F inlet 100 psig inlet pressure; 100% relative humidity, 100°F ambient temperature, and 5 psi pressure drop.
Automatic energy savings controller Models: DLE40, DLE60, DLE90, DLE115, DLE165, DLE260, DLE370, DLE450, DLE590, DLE750, DLE930, DLE1130, DLE1350, DLE1550, DLE2100, DLE3000, DLE4100, DLE5400

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Inlet
Flow2
Power
Supply
Inlet/Outlet
Dimensions
Weight
@ 100 psig
SCFM
V/ph/Hz
NPT Male (in.)
L in.
W in.
H in.
Lbs.
DLE40
40
100-240/1/60
12-24VDC
1"
49"
34"
35"
365
DLE60
60
100-240/1/60
12-24VDC
1"
64"
34"
35"
445
DLE90
90
100-240/1/60
12-24VDC
1"
81"
34"
35"
575
DLE115
115
100-240/1/60
12-24VDC
1"
57"
46"
41"
685
DLE165
165
100-240/1/60
12-24VDC
1"
57"
46"
41"
685
DLE260
260
100-240/1/60
12-24VDC
2"
75"
51"
41"
1010
DLE370
370
100-240/1/60
12-24VDC
2"
65"
58"
42"
1215
DLE450
450
100-240/1/60
12-24VDC
2"
73"
58"
42"
1350
DLE590
590
100-240/1/60
12-24VDC
2"
104"
55"
51"
1473
DLE750
750
100-240/1/60
12-24VDC
3" ANSI Flg.
107"
57"
51"
2134
DLE930
930
100-240/1/60
12-24VDC
3" ANSI Flg.
112"
63"
59"
2414
DLE1130
1,130
100-240/1/60
12-24VDC
3" ANSI Flg.
115"
66"
59"
2875
DLE1350
1,350
100-240/1/60
12-24VDC
3" ANSI Flg.
120"
68"
59"
3722
DLE1550
1,550
100-240/1/60
12-24VDC
3" ANSI Flg.
117"
74"
59"
4167
DLE2100
2,100
100-240/1/60
12-24VDC
4" ANSI Flg.
119"
82"
59"
4417
DLE3000
3,000
100-240/1/60
12-24VDC
4" ANSI Flg.
125"
86"
67"
9010
DLE4100
4,100
100-240/1/60
12-24VDC
6" ANSI Flg.
124"
100"
88"
9900
DLE5400
5,400
100-240/1/60
12-24VDC
6" ANSI Flg.
124"
105"
89"
12000
2Inlet flow - Conditions for rating above dryers are: compressed air at dryer inlet: 100°F inlet 100 psig inlet pressure; 100% relative humidity, 100°F ambient temperature, and 5 psi pressure drop.
DL Series Air Dryers - All Models
  • • Up-flow drying which allows water and heavy contaminants to drop out of the air stream
  • • Premium grade desiccant beads enhance surface area, requires minimum purge air, and have high crush strength
  • • ASME and CRN certified pressure vessels
  • • Optional pre-mounted filtration package increases lifetime of desiccant and avoids system contamination
  • • Precision switch valves automatically shift to low pressure side of the circuit to control process flow
STANDARD CONTROLLER - DLS Models
  • • Time controlled bed regeneration cycles offer consistent performance and economy of purchase
  • • Simple timer based controller
SELECTABLE PURGE CONTROLLER - DLP Models
  • • Tailor the drying cycles to match your peak air demand in 10% increments
  • • Controller offers four pressure dew point settings to increase your savings
AUTOMATIC ENERGY SAVINGS CONTROLLER - DLE Models
  • • Automatically matches purge air use to the demand on the system
  • • Controller offers four pressure dew point settings to increase your savings
  • • Controller features vacuum fluorescent text display that communicates energy savings, operating mode and service reminders

Options
  • 250 PSIG Option
  • Low Ambient Package
  • Explosion Proof

Accessories
Filtration Packages
High Humidity Alarm
Dew Point Monitor
Pilot and Instrument Air Tubing and Pilot & Instrument Air Tubing & Fittings 316LSS
