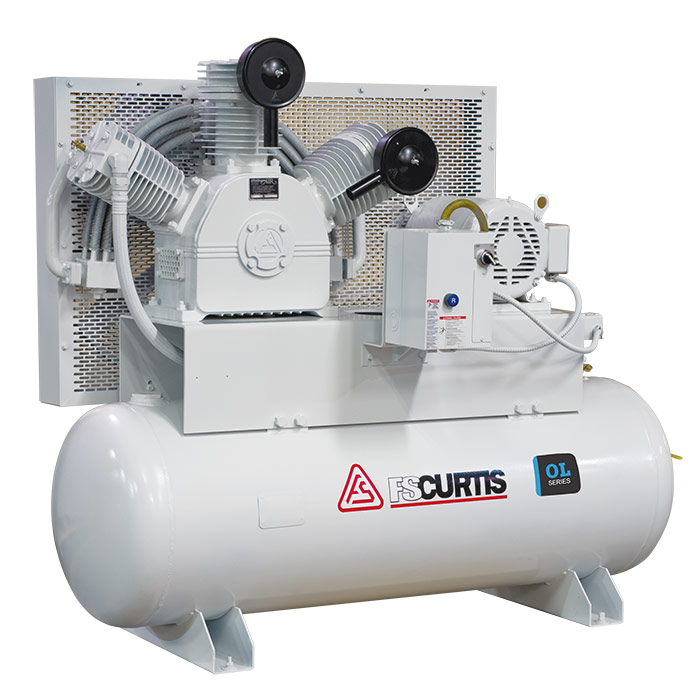

FS-CURTIS OL 5-15HP Click for Larger View

Call us TODAY at 727-835-0682 or
Toll Free at 800-761-4298

Request A Quote!

OL Series 4-15kW
Oil-Less High Performance Air Compressors

The FS-Curtis OL Series is the ideal reciprocating oil-less air compressor for applications where critical air quality is required such as food and beverage, medical, chemical processing, pharmaceutical, electronics, and more. The 100% dry crankcase provides oil-less compressed air for critical applications with zero oil carryover. It’s environmentally friendly with no oil vapor generated by the compressor, which eliminates the need for oil changes and oil disposal costs. The low speed pump and robust cast-iron crankcase, cylinder, and cylinder head ensures that the OL will offer long-term reliability and long-lasting performance.
Benefits & Features:
  • Low speed pump for long-term reliability and efficiency
  • 100% duty cycle for continuous operation
  • Robust cast-iron crankcase, cylinder, and cylinder head for long-lasting performance

Tank Mounted and Base Mounted Available

Simplex Tank-Mounted Models: OL5, OL7.5, OL10, OL15
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
Tank
Size
Pump
No. of Cyl
CFM @
100 PSI
Connection
NPT
Dimensions
(base mounted)
(L x W x H In.)
Weight
(base mounted)
Lbs.
OL5
5
120
VW-50
2
12.3
¾"
73.5 x 29.0 x 51.5
680
OL7.5
7.5
120
TW-75
3
23.1
¾"
72.3 x 30.0 x 60.0
895
OL10
10
120
TW-100
3
35.6
¾"
73.4 x 30.0 x 62.5
1015
OL15
15
120
TW-150
3
52.0
¾"
73.4 x 30.0 x 62.5
1175

Duplex Tank-Mounted Models: OL5, OL7.5, OL10, OL15
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
Tank
Size
Pump
NO. of Cyl
CFM @
100 PSI
Connection
NPT
Dimensions
(base mounted)
(L x W x H In.)
Weight
(base mounted)
Lbs.
OL5
5
120
VW-50
2
24.6
¾"
86.0 x 29.0 x 55.0
1130
OL7.5
7.5
120
TW-75
3
46.2
¾"
103.0 x 29.5 x 59.4
1565
OL10
10
200
TW-100
3
71.2
1"
104.0 x 35.0 x 66.8
1985
OL15
15
200
TW-150
3
104.0
1"
104.0 x 35.0 x 66.8
2300

Base Mounted Models: OL5, OL7.5, OL10, OL15
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
Pump
NO. of Cyl
CFM @
100 PSI
Connection
NPT
Dimensions
(base mounted)
(L x W x H In.)
Weight
(base mounted)
Lbs.
OL5
5
VW-50
2
12.3
7⁄8" OD
41.5 x 23.5 x 28.5
370
OL7.5
7.5
TW-75
3
23.1
7⁄8" OD
50.3 x 23.2 x 35.5
605
OL10
10
TW-100
3
35.6
7⁄8" OD
53.1 x 23.2 x 37.5
615
OL15
15
TW-150
3
52.0
7⁄8" OD
53.4 x 23.2 x 37.3
740

OIL-LESS AIR QUALITY
• 100% dry crankcase provides oil-less compressed air for critical applications with zero oil carryover
• Over-sized fan and multiple inter-stage cooling pipes to maximize heat transfer for lower discharge temperature
• Environmentally friendly with no oil vapor generated by the compressor. Eliminates oil changes and oil disposal costs
• Protects downstream equipment and reduces maintenance cost
• Decreases costs and reduces system pressure loss due to reduction of air filtration equipment in the compressed air system

RELIABILITY FOR YOUR CRITICAL APPLICATION
• Low speed pump for long-term reliability and efficiency
• 100% duty cycle for continuous operation
• Robust cast-iron crankcase, cylinder, and cylinder head for long-lasting performance

INDUSTRY LEADING PERFORMANCE
• Components have been made to the highest quality and precision to provide maximum performance in the most demanding of applications
• Designed for low noise level
• Precision manufactured valves increase air flow and maximize reliability



Options
60, 80 & 120 Gal Tank
Power Supply Options: 3/60/230V or 3/60/460V
Epoxy receiver (120 Gal or 200 Gal)
Hour Meter
Controls: On-off-switch

Accessories
Electric drain 115V
