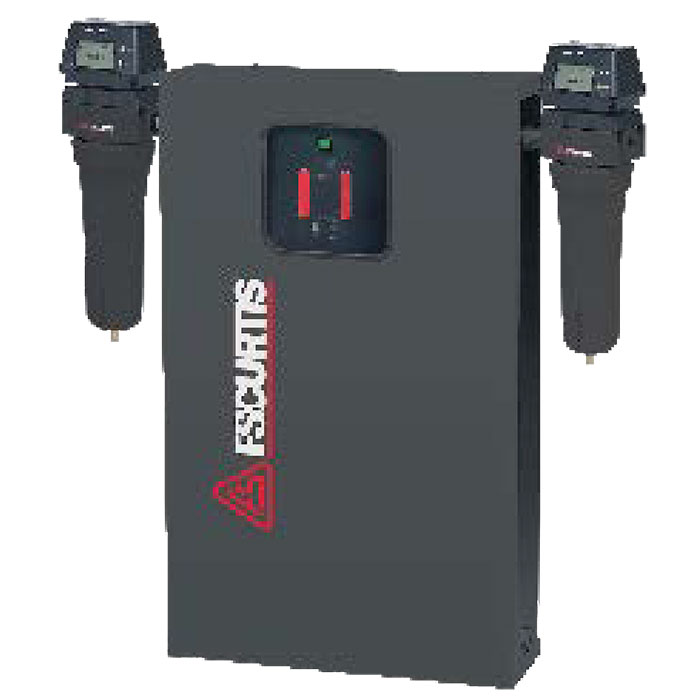

FS-CURTIS DLW Series Click for Larger View

Call us TODAY at 727-835-0682 or
Toll Free at 800-761-4298

Request A Quote!

DLW Series 7-50 SCFM
Wall Mounted Desiccant Air Dryers

FS-Curtis DLW desiccant air dryers protect air systems exposed to temperatures below freezing. The fully enclosed wall-mounted package delivers dew points of ISO 8573.1 Class 1 and Class 2 with flow rates of 7 to 50 SCFM. Applications including labs, hospitals, and high-tech installations all benefit from the clean, dry air, improved productivity, and more floor space provided by DLW series.

Benefits & Features:
  • Enclosed design with clean, streamlined piping for easy installation and quiet operation
  • Premium grade desiccant beads enhance surface area, requires minimum purge air, and have high crush strength
  • Front mounted at-a-glance control panel, automatic operation and stored adsorptive energy result in long desiccant life
  • Optional filtration system increases lifetime of desiccant and avoids system contamination

Models: DLW-7, DLW-13, DLW-20, DLW-25, DLW-30, DLW-35, DLW-50

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
Inlet
Flow1
Power
Requirements
Inlet/Outlet
Dimensions
Weight
(-40°F)
SCFM
V/ph/Hz
NPT Male (in.)
L in.
W in.
H in.
Lbs.
DLW-7
7
110-120/1/60
220-240/1/60
½"
30.5"
17.5"
6.7"
55
DLW-13
13
110-120/1/60
220-240/1/60
½"
30.5"
17.5"
6.7"
60
DLW-20
20
110-120/1/60
220-240/1/60
½"
30.5"
17.5"
6.7"
71
DLW-25
25
110-120/1/60
220-240/1/60
½"
30.5"
24.4"
8.6"
93
DLW-30
30
110-120/1/60
220-240/1/60
½"
30.5"
24.4"
8.6"
93
DLW-35
35
110-120/1/60
220-240/1/60
½"
30.5"
24.4"
8.6"
99
DLW-50
50
110-120/1/60
220-240/1/60
½"
43.0"
24.4"
8.5"
132
1Inlet flow - Conditions for rating above dryers are: compressed air at dryer inlet: 100 psig inlet pressure; 100% relative humidity.

  • • Enclosed design with clean, streamlined piping for easy installation and quiet operation
  • • Premium grade desiccant beads enhance surface area, requires minimum purge air, and have high crush strength
  • • Front mounted at-a-glance control panel, automatic operation and stored adsorptive energy result in long desiccant life
  • • Optional filtration system increases lifetime of desiccant and avoids system contamination

Options
  • filtration system - increases lifetime of desiccant and avoids system contamination
