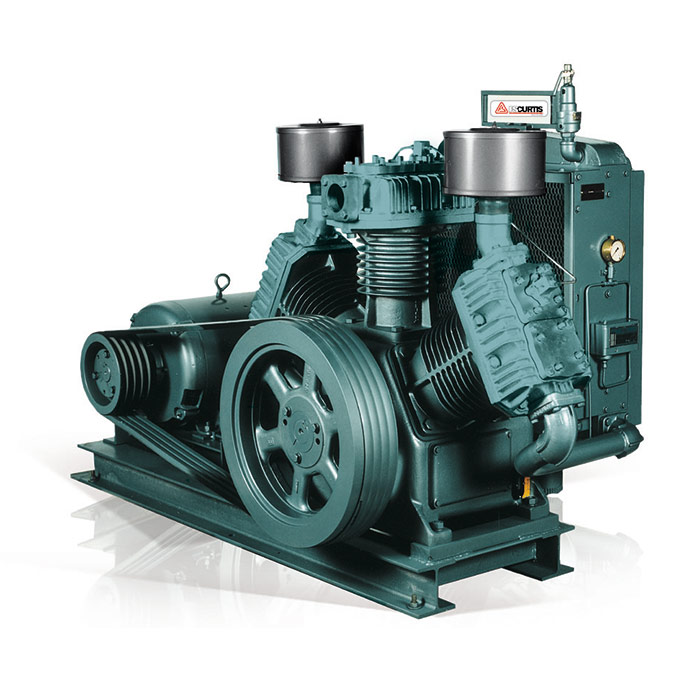

FS-CURTIS CW Series 40-125HP Click for Larger View

Call us TODAY at 727-835-0682 or
Toll Free at 800-761-4298

Request A Quote!

CW Series 40-125HP

FS-CURTIS CW Series Large Industrial single and two-stage compressors deliver the performance you need to get the job done. With models ranging from 30 to 250psi, the CW Series performs where other compressor technologies simply cannot. These cast-iron, pressure-lubricated, low-RPM compressors feature stainless steel valve discs, oversized tapered main roller bearings, and a robust ductile iron crankshaft. Low-speed compressor pumps and electric motors also ensure a long service life with low maintenance. It all adds up to reliability for years to come.

Benefits and Features:
  • CENTRO-RING PRESSURE LUBRICATION
  • 100% CAST-IRON CYLINDER HEADS, CONNECTING RODS, AND CRANKSHAFT
  • QUALITY COMPONENTS

CW SERIES — SINGLE-STAGE
Low Pressure (30-70 PSIG)
Models: CW-100S-16, CW-200S-17, CW-200S-18, CW-300S-19, CW-300S-20, CW-300S-21
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
CFM @ 40 PSI
CFM @ 70 PSI
Dimensions
(LxWxH In.)
Weight
(LBS)
CW-100S-16
40
N/A
N/A
81×45×47
1950
CW-200S-17
50
346
268
82×43×53
2720
CW-200S-18
60
N/A
297
82×43×53
3000
CW-300S-19
75
562
N/A
92×57×75
3500
CW-300S-20
100
676
530
92×57×75
3700
CW-300S-21
125
N/A
639
92×57×75
3950

CW SERIES — TWO-STAGE
Medium Pressure (100-150 PSIG)
Models: CW-100-16, CW-200-17, CW-260-18, CW-300-19, CW-300-20, CW-300-21
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
CFM @ 100 PSI
CFM @ 125 PSI
CFM @ 150 PSI
Dimensions
(LxWxH In.)
Weight
(LBS)
CW-100-16
40
172
165
149
81×45×47
1950
CW-200-17
50
240
219
206
82×43×53
2720
CW-260-18
60
259
248
237
82×43×53
3000
CW-300-19
75
363
321
303
92×57×75
3500
CW-300-20
100
482
438
413
92×57×75
3700
CW-300-21
125
505
491
475
92×57×75
3950

CW SERIES — TWO-STAGE
High Pressure (175-250 PSIG)
Models: CW-150H-16, CW-150H-17, CW-260H-17, CW-260H-18, CW-300H-20, CW-300H-21
*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
CFM @ 200 PSI
CFM @ 250 PSI
Dimensions
(LxWxH In.)
Weight
(LBS)
CW-150H-16
40
122
117
81×45×47
1925
CW-150H-17
50
154
146
82×43×53
1975
CW-260H-17
50
191
169
85×40×51
2720
CW-260H-18
60
218
205
82×43×53
3000
CW-300H-20
100
345
323
92×57×75
3700
CW-300H-21
125
437
406
92×57×75
3950

   Click Here For Maintenance Kits


*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Maintenance Kits
for Model
Part
Number
 Description
CW Series
FSK-C100SK
 Pump Model C-100
includes lubricant and air filter for one service.
CW Series
FSK-C100150SK
 Pump Model C-100S
includes lubricant and air filter for one service.
CW Series
FSK-C100150SK
 Pump Model C-150H
includes lubricant and air filter for one service.
CW Series
FSK-C200SK
 Pump Model C-200 includes lubricant and air filter for one service.
CW Series
FSK-C200SSK
 Pump Model C-200S
includes lubricant and air filter for one service.
CW Series
FSK-C200SK
 Pump Model C-260
includes lubricant and air filter for one service.
CW Series
FSK-C260HSK
 Pump Model C-260H
includes lubricant and air filter for one service.
CW Series
FSK-C200SSK
 Pump Model C-200S
includes lubricant and air filter for one service.
CW Series
FSK-C300SSK
 Pump Model C-300S
includes lubricant and air filter for one service.
CW Series
FSK-C300HSK
 Pump Model C-300H
includes lubricant and air filter for one service.
CENTRO-RING PRESSURE LUBRICATION
Patented FS-Curtis design
• Proprietary technology is an FS-Curtis exclusive
• Supplies pressurized oil internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods
• Helps ensure maximum uptime and increase service life

100% CAST-IRON CYLINDER HEADS, CONNECTING RODS, AND CRANKSHAFT
All cast-iron where it counts for longer life with less maintenance
• Some pumps claim 100% cast-iron yet still have aluminum cylinders, cylinder heads, connecting rods and crankshafts – not FS-Curtis
• Ductile cast-iron crankshaft and connecting rods are stronger, more corrosion-resistant and less likely to break
• Slow-turning pump increases pump life
• Rugged parts and construction for industrial performance

QUALITY COMPONENTS
Built for 100% continuous duty
• Industry-leading stainless-steel valve assemblies for increased airflow and reliability
• Oversized tapered main roller bearings to ensure long life
• Premium finned intercooler maximizes heat dissipation
• Metal intake filter/silencer is superior to plastic
• Heavy-duty stamped-steel belt guard
• Suction valve head unloaders for continuous running air compressors

STANDARD EQUIPMENT
• NEMA-1 starter with control power transformer (shipped loose)
• Premium efficient ODP motor
• Constant speed control
• V-belt drive with multi-groove flywheel
• Large metal intake filter silencers
• OSHA-approved enclosed belt guard
• C-100 and C-150 — Pressure lubricated with Centro-ring™ oil system
• C-200, C-260 and C-300 — Pressure lubricated with gear type oil pump to include
full flow oil filter, oil pressure gauge and low oil pressure shutdown switch


Options
• Auto start/stop control
• Dual control
• Low oil shutdown on C-100 and C-150 models
• NEMA-1 high discharge air temperature shutdown
• NEMA-1 high interstage air temperature shutdown
• NEMA-4 control panel enclosure
• TEFC motor
